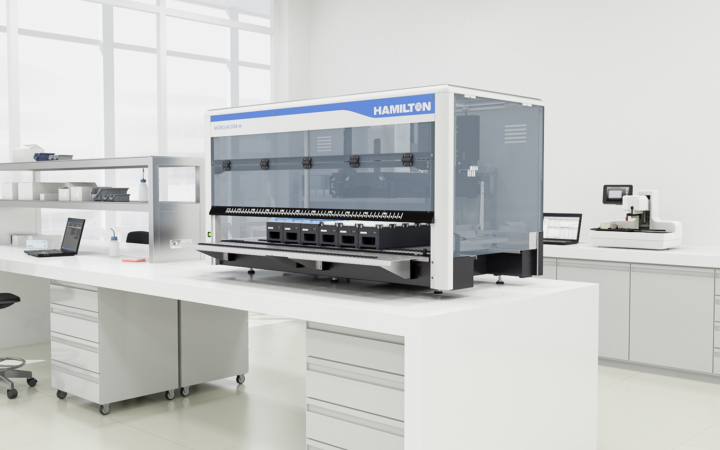

Microlab STAR M

The new and upgraded STAR M combines all of Hamilton’s superior and patented technologies in the most flexible and reliable liquid handling workstation. The completely flexible design offers unlimited expandability from addition of single pipetting tools to doubling the workspace when enhancing a STARlet M to STARplus M.

The option of 3rd party integrations on either side guarantees the maximum degree of flexibility to quickly adapt to new laboratory needs.


Patented technology

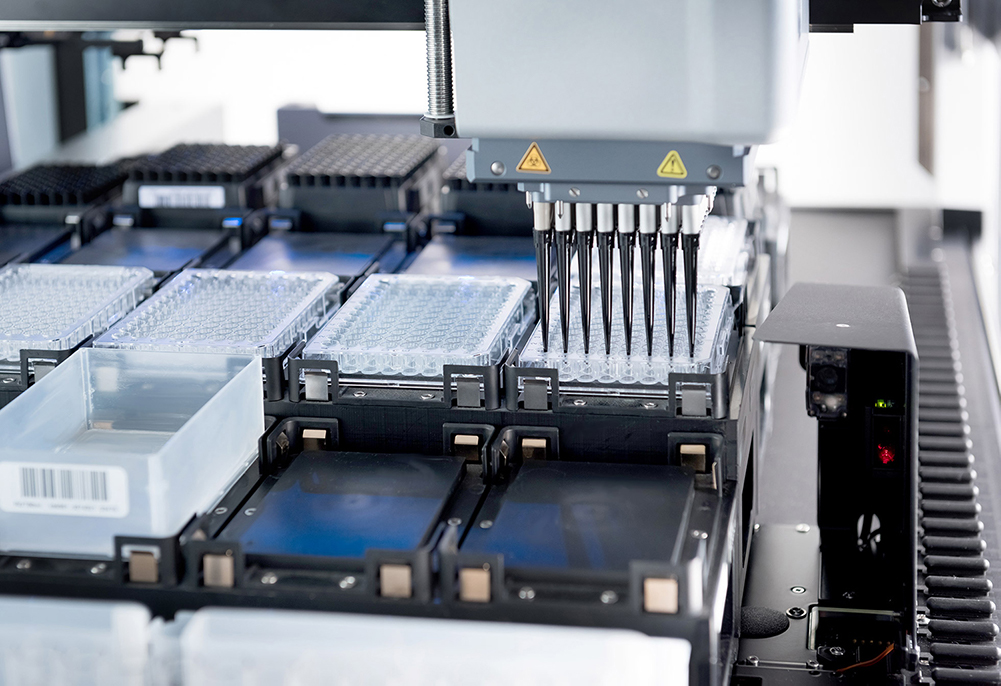

The Microlab STAR uses air displacement pipetting to achieve superior measurement accuracy. Additionally, Hamilton pipette channels and tips are designed to fit precisely together using a patented lock-and-key design called CO-RE (Compressed O-Ring Expansion). This creates a tight seal with precise tip alignment to eliminate tip distortion and ensure the highest accuracy during liquid handling steps. Optional anti-droplet control and liquid level detection technologies further safeguard sample and results integrity.

STAR M is capable of:

  • liquid aliquoting
  • fraction detections
  • NA extraction
  • sample dilution

Assay ready workstations

The Microlab STAR M comes as open and customizable platform or as predefined assay ready workstations designed to automate specific assays. These assay ready workstations iclude

  • easyBlood STARlet and STAR for blood aliquioting
  • easyPunch STARlet for samples collection from FTA cards
  • NGS STAR for prepping libraries
  • Genomic STARlet for NA extraction
  • and more!

Microlab STAR M is available in three sizes:

 Microlab STARletMicrolab STARMicrolab STARplus
Length 1124 mm 1664 mm 2160 mm
Width 795 mm 795 mm 795 mm
Width with Autoload 1006 mm 1006 mm 1006 mm
Height 903 mm 903 mm 903 mm

Link to Hamiltons page: Microlab STAR
